SANDVIK-DX800

RANGER DX800 — SURFACE TOP HAMMER DRILL RIG

Ranger DX800 is a hydraulic, diesel-powered, self-propelled top-hammer drill rig, and is engineered for work in challenging terrain for site set up, pre-split, and production in surface drilling. The self-contained and crawler-mounted rig has a revolving superstructure, unmatched stability, and drills holes with a diameter of 76 to 127 millimeters (3 to 5 inches).

Ranger DX800 features an ergonomic, high-visibility cabin and a rod handling system, prioritizing operator safety and experience.

Ranger DX800 drill rigs are best suited to drill hole sizes between 76 to 127 mm (2 to 5 in.) in applications such as road cutting, pipeline drilling and foundation drilling as well as production drilling in medium-sized quarries and open pit mines.

This equipment ensures stability thanks to its counterweight solution, which keeps a steady operation even in the toughest conditions. The rig also features the Rock Pilot+ drilling control system, which is designed to ensure smooth rotation, solid rock contact and fast penetration in different rock conditions.

Other models within this series of drill rigs include the Ranger DX700, Ranger DX600 and Ranger DX500.

ADVANTAGES
– Excellent stability even in uneven terrain
– Drilling coverage of 17.6 m² (optionally 26.4 m²) 12 hours continuous drilling
– Straight holes with Rock Pilot+ drilling control system
– High suction capacity dust collectors
– Advanced boom design
– ROPS- and FOPS- certified safety cabin

STANDARD COMPONENTS
•1 pc Rock drill HL 820 T, hydraulic
•1 pc Chain feed CF 145H with movable drill steel support
•1 pc Rod handler RH 714 incl. 1 set of jaws
•1 pc Boom DB 800 H, articulated
•1 pc Carrier track mounted, turnable superstructure
•1 pc Power pack diesel driven, hydraulic pumps and on-board
•compressor with twin pressure control
•1 pc Control system Rock Pilot+
•1 pc Operator's cabin F.O.P.S. and R.O.P.S. with AC
•1 pc Dust collection system DC 810 H, hydraulic, Primary
•separator
•9 pcs Working lights
•1 pc Gauge set for accumulator pressure checking
•1 pc Back-up alarm
•1 Set Manuals, paper copy
•1 Set Manuals, CD rom
•EU-safety devices

SELECTION OF OPTIONS
•Alternative seat ISRI 6000
•Radio with CD-MP3 player
•Reversing camera
•Vacuum cleaner for cabin
•GPS aiming device for TIM and TIMi inclined holes
•2000RPM Engine, 9,1m^3/min compressor
•Spirit level angle indicator
•TIM 5200 for vertical holes
•TIM 5300 for vertical holes and depth measuring
•TIM 6300 for inclined holes and depth measuring
•TIM 6500 for inclined holes, depth measuring and laser level
•TIM 6700 (TIM6500 with open interface)
•TIM3D hole navigation system
•Horizontal drilling kit including hose reel
•EN 16228 Safety cage for feed (includes hose reel)
•Hose reel (not with 14' rods)
•Kit for alternative steels, each
•Thread greasing
•Thread greasing with 5 gallon bucket
•Power extractor
•Readyness for Power Extractor
•HF820 T rock drill. Replaces standard components
•Anti- freeze system for air lines
•Biogradeable hydraulic oil
•Central lubrication system Sandvik
•Electric fuel filling pump
•Fast fill connection for fuel Wiggins
•Guides for grousers, long
•Hydraulic rear ground support
•Hydraulic winch with radio remote and cable tightness automatics
•Hydraulic winch with full radio drilling, tramming boom and rod handling
•Led lights, 6 pcs
•Radio remote control for rear ground support, tramming and oscillation
•Full radio remote control for drilling, tramming, boom and rod handling
•Three bar grouser plates
•Towing hook
•Turnable superstructure 180 deg.
•Xenon lights, 6 pcs
•Fuel powered heater for engine and cabin
•Fuel powered heater for engine, cabin and water tank
•Readyness for fuel powered heater
•Dustmizer (engine heater option needed below freezing point)
•Flushing control automatics
•Sampling device
•Shut down of suction for water holes
•Water injection system
•Grinder Sandvik RG420H
•Extra manuals, price will be added according to pricing sheet
•First service kit for DX780, DX800
•Special tools for HL 820 T, field kit
•Special tools for HL 820 T, compete
•Service agreement - select level from extra item
•SanRemo - select level from extra item

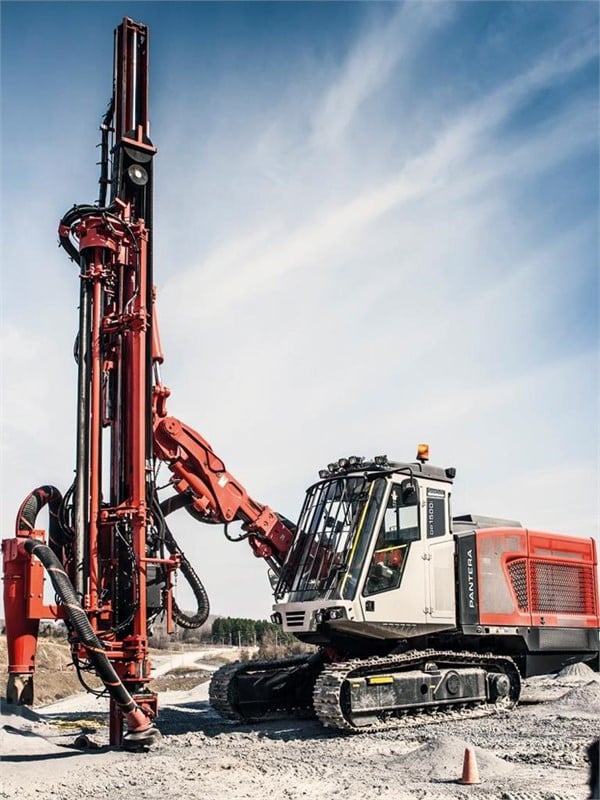

Similar models may be shown in addition to the featured model.
Equipment may be shown with options. Specifications are subject to change without prior notice.
