MSM MINING SKID MOUNTED HYDRAULIC DRILLING ATTACHMENT
- Share
Manufacturer
TEI
Model
MSM MINING SKID MOUNTED HYDRAULIC DRILLING ATTACHMENT

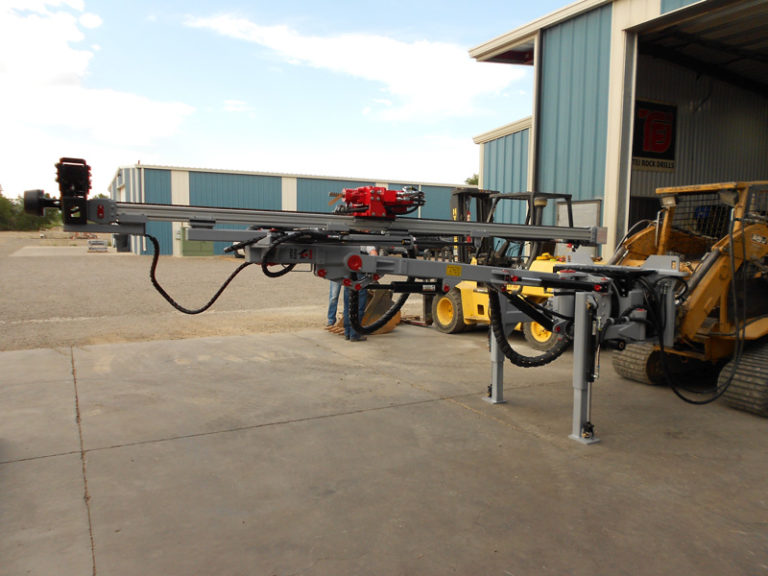

The MSM drill features a rotating boom and hydraulic cylinders, enabling it to be positioned in multiple drilling positions, including up, down, sideways, and upside down. This versatility allows the drill to perform precision tasks like side wall and roof support drilling. The front stabilizers ensure stability in all drilling configurations and can be folded up when not in use.
Standard Features of the MSM:
- Choice of powerful 9 to 11 kW percussion drill heads with high torque options for bolting.
- ACF aluminim chain feed for 2.4 meter rods.
- Base rotating boom with 3.5 meter vertical reach.
- Covers full 3 meter vertical reach.
- Two front stabilizers for support during drilling and fold up for traveling
