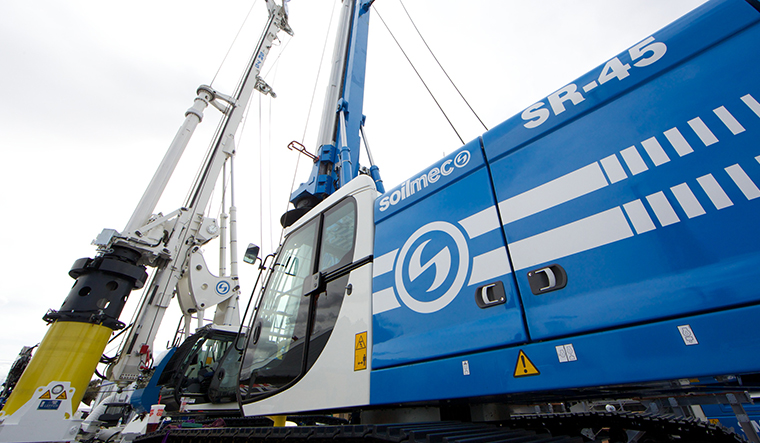

SR-45 Blue Tech Plus
- Share
Price
Contact Us For Pricing
Manufacturer
Soilmec
The SR-45 is designed to deliver dynamic drilling performance and fast mobilization, so you can start working on site without delays.
With Blue Tech Plus, Soilmec introduces a breakthrough technology:
a new hydraulic system with an intelligent pump that communicates with the entire system to optimize power and fuel consumption—combined with all the benefits of Blue Tech technology.
Technical data
| Dato | Unità di misura | Valore |
|---|---|---|
| Diesel engine T3/Stage V | kW | 209/209 |
| Max torque (kNm) | kNm | 185 |
| Weight | t | 37–40 |
| CCS - Cylinder Crowd System pull up/down | kN | 207/140 |
| Main winch | kN | 165 |
| Min. transport weight | t | 41 c/w kelly |
| WCS - Winch Crowd System pull up/down | kN | 240/240 |
LDP - Large Diameter Pile
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (LHR) | mm | 3000 |
| Max depth (LDP) | m | 69.7 |
CFA - Continuous Flight Auger
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (CFA) | mm | 1000 |
| Max depth (CFA) | m | 28 |
DP - Displacement Pile
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (DP) | mm | 350 |
| Max TCT diameter (DP) | mm | 400 |
| Max pile depth (DP) | m | 23 |
TJ - Turbojet
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (TJ) | mm | 1400 |
| Max depth (TJ) | m | 23 |
LHR - Low Head Room
| Dato | Unità di misura | Valore |
|---|---|---|
| Max diameter (LHR) | mm | 3000 |
| Max depth (LHR) | m | 23.7 |
| Modular mast height range (LHR) | m | 8.4 / 9.45 |
