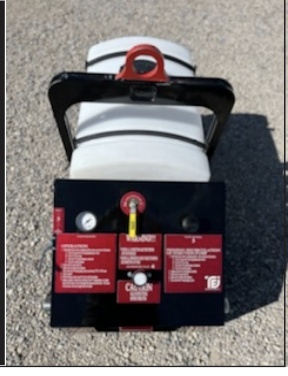

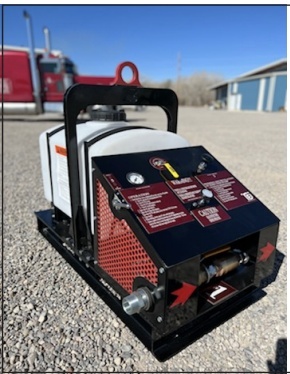

- DS26851 DUST SUPPRESSION SYSTEM
TEI provides a dust suppression system that injects water into the flushing air, controlling respirable dust. The system helps to comply with local and federal safety regulations regarding crystalline silica. Equipped with a 26-gallon (98.4 liter) water tank, the DS26851 can provide dust suppression for 4 - 8 hours depending on the size of the hole.
The system is a simple system using pneumatic water-pump, which receives air power from the drill flush-air. The water pump creates more pressure than the air and injects water back in the airline creating a mist that can be easily adjust-ed for water-to-air ratio.
The system is a simple system using pneumatic water-pump, which receives air power from the drill flush-air. The water pump creates more pressure than the air and injects water back in the airline creating a mist that can be easily adjust-ed for water-to-air ratio.
| U.S. | Metric | |
|---|---|---|
| WATER TANK CAPACITY | 26 gal | 98.4 L |
| AIR SUPPLY CONNECTION | 1 1/2 in NPT | 1 1/2 in NPT |
| AIR SUPPLY PRESSURE | 0 - 250 psi | 0 - 17.2 bar |
| DRY WEIGHT | 275 lb | 125 kg |
