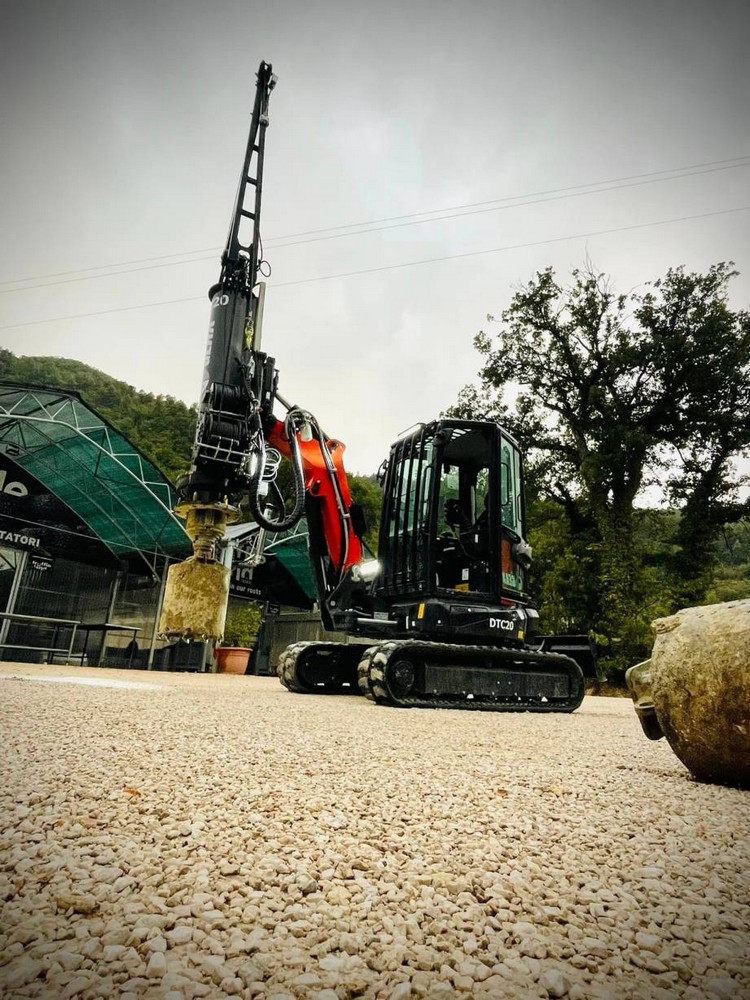

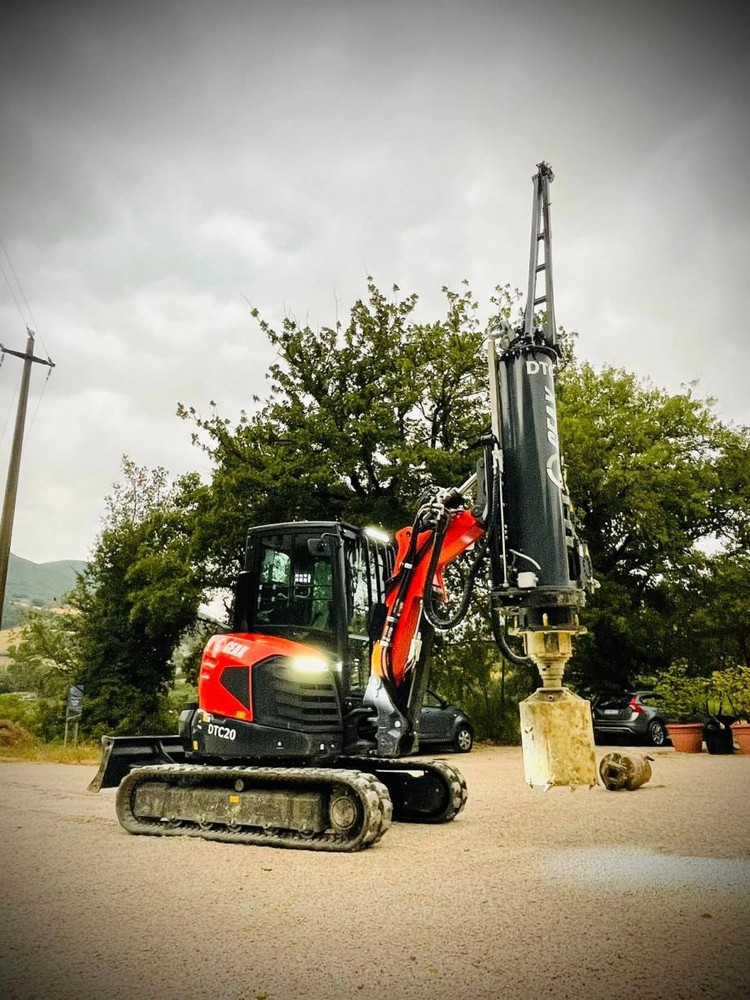

GEAX-dtc20
- Share
Year
2024
Price
Contact Us For Pricing
Manufacturer
Geax
Model
DTC20
Condition
New
| Base | |
| Engine power | 32.3 kW – 43.3 hp |
| Undercarriage length | 2.260 mm – 7.4 ft |
| Width over tracks | 1.750 mm – 5.75 ft |
| Mast | |
| Forward inclination | >10° |
| Backward inclination | >10° |
| Lateral inclination | ±7° |
| Mast vertical stroke | 900 mm – 2.95 ft |
| Rotary | |
| Nominal torque | 17 kNm – 12.500 lbf ft |
| Drilling speed (2) | 20 ÷ 60 rpm |
| Winches | |
| Main winch line pull | 30 kN – 6.750 lbf |
| Aux winch line pull | 16 kN – 3.600 lbf |
| Crowd system | |
| Pull down force | 40 kN – 9.000 lbf |
| Extraction force | 70 kN – 15.740 lbf |
| Excavation | |
| Max pile diameter | 800 mm – 32 in |
| Max pile depth | 21.5 m – 70.5 ft |
| Min working headroom | 3.220 mm – 10.6 ft |

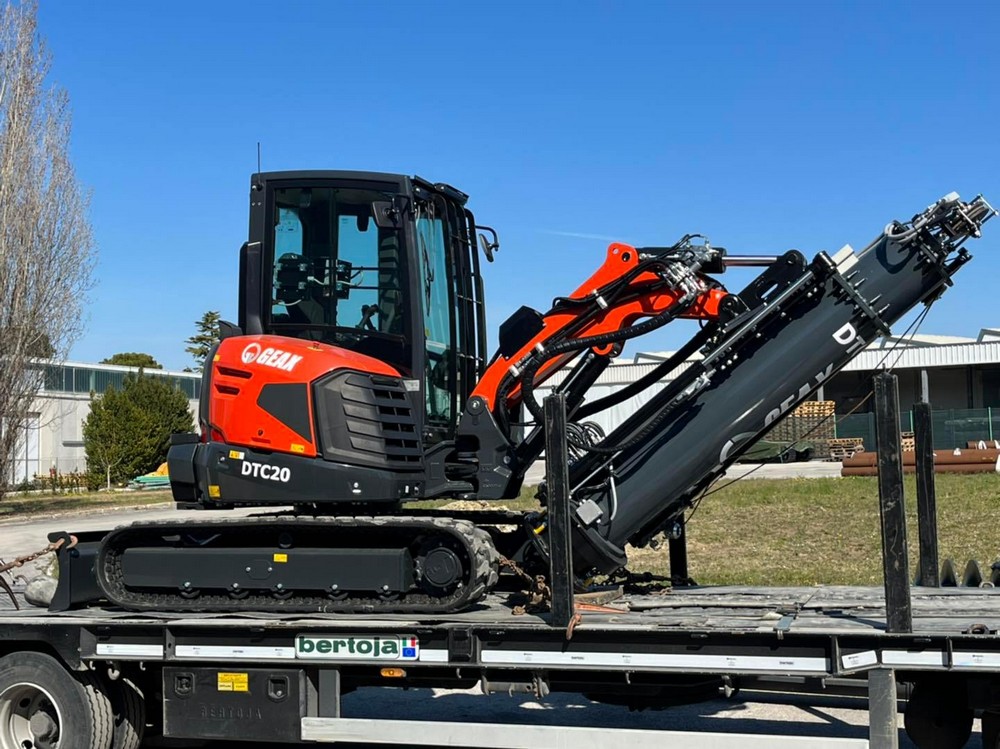

| Transport | |
| Length | 4.710 mm – 15.45 ft |
| Width | 1.750 mm – 5.75 ft |
| Height | 2.520 mm – 8.25 ft |
| Weight | 6.200 kg – 13.670 lb |
