GEAX-ek180
- Share
2026
Contact Us For Pricing
Geax
EK180
New

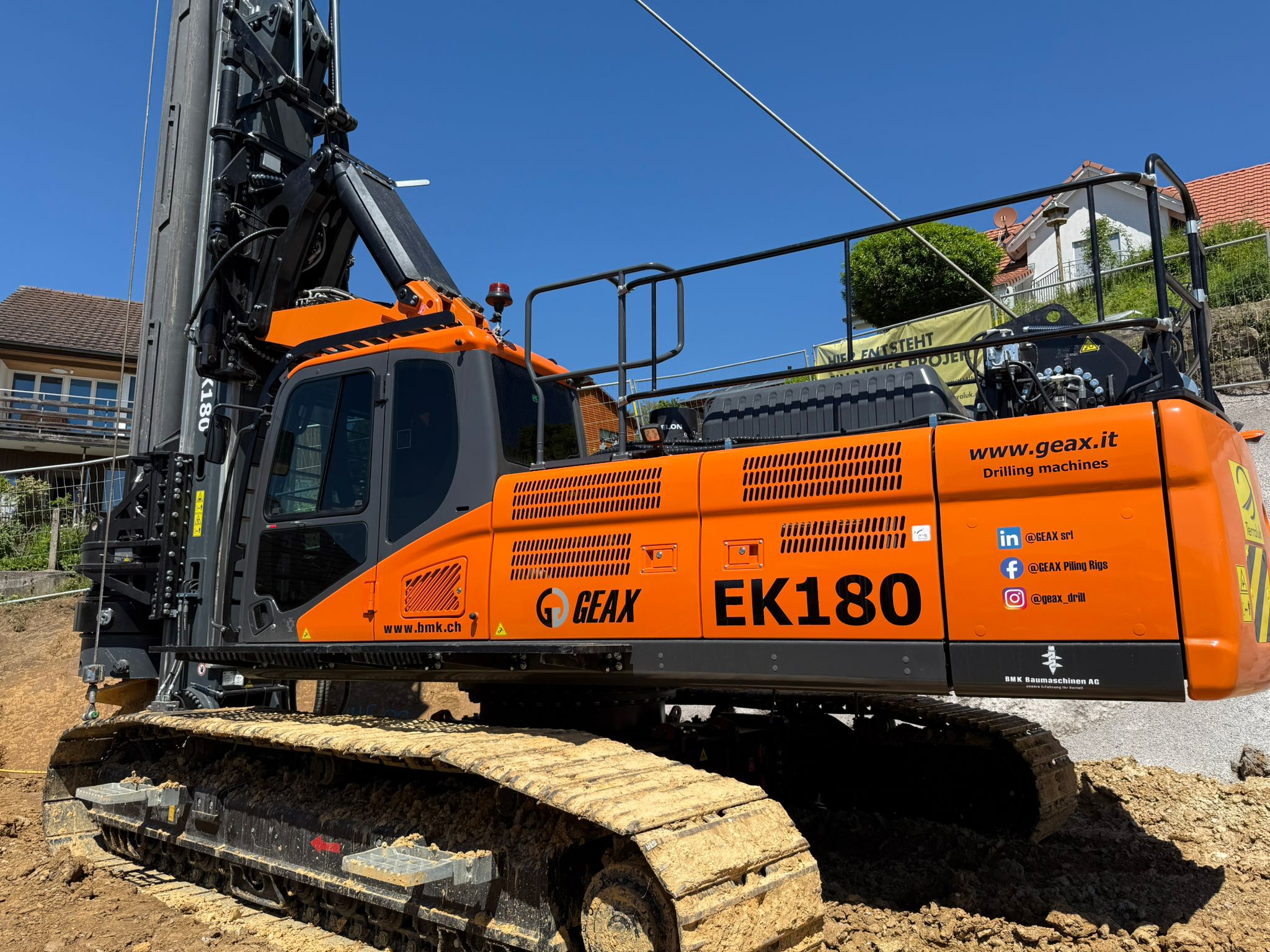

Thanks to an efficiently engineered hydraulics with high quality components and a powerful last generation engine, the EK180 offers superior performance relative to the size, while keeping very low running costs.

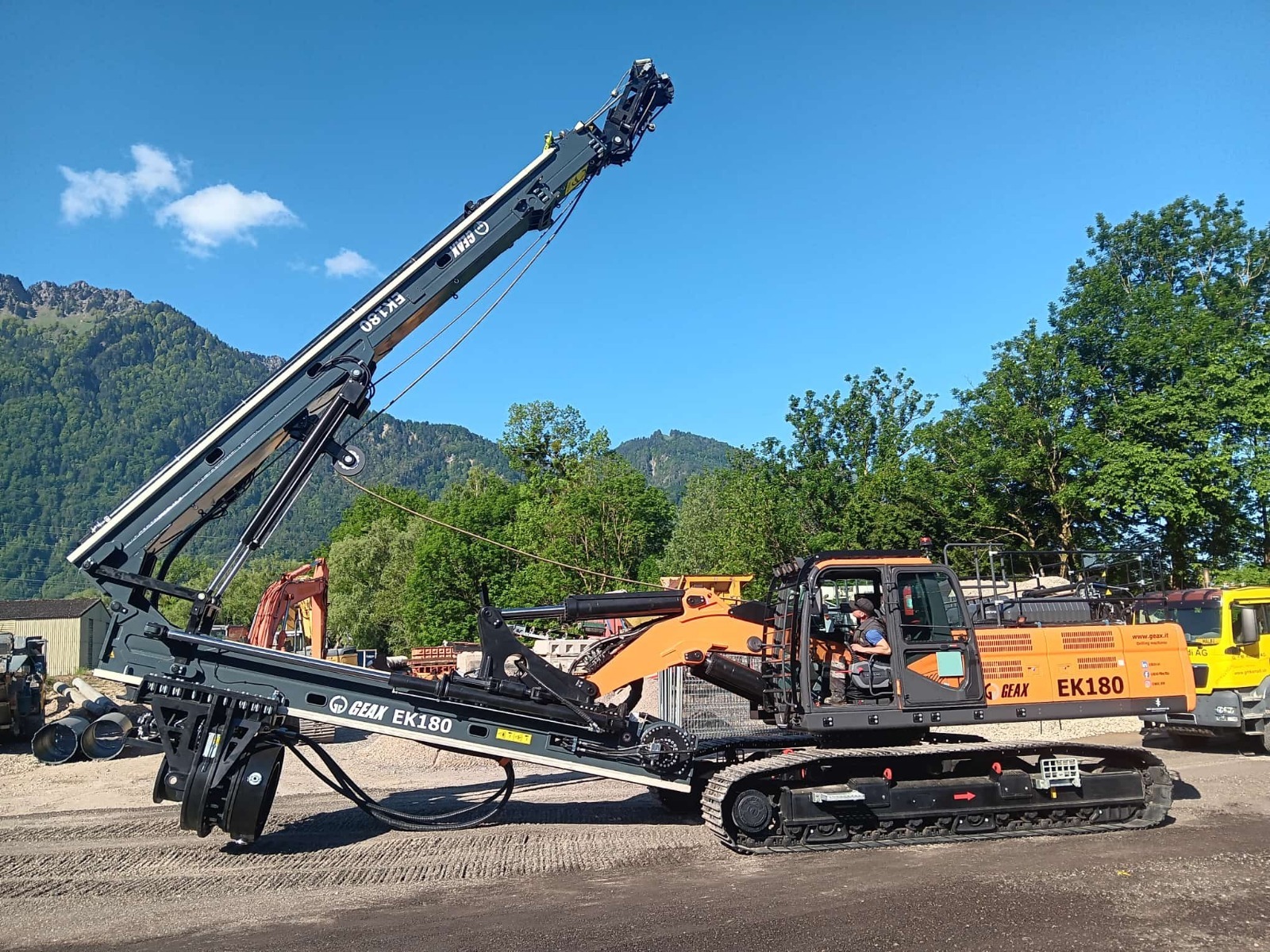

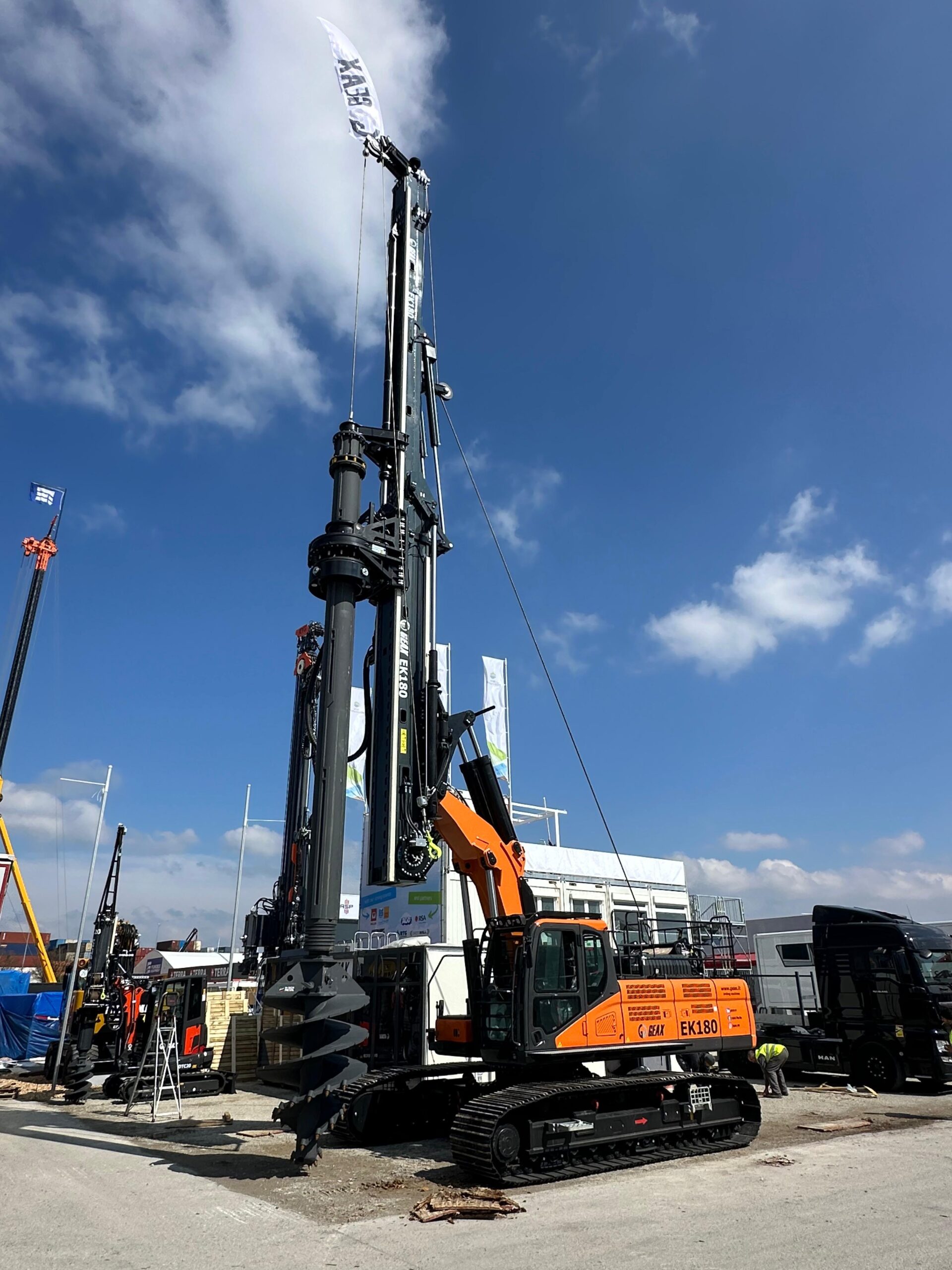

Like all Geax machines, the EK180 is provided with a long boom supporting the sliding mast. This allows a great variety of tool positioning for drilling like: long reach drilling, low headroom and maximized tool height for casing. The mast folding system is patented.
With its mast architecture and proverbial stability, the EK180 can drill in any site including slopes, uneven terrains, and tight spaces. The higher maneuverability allows fast movements compared to a traditional rig.
The EK180 can easily be converted in other drilling modes with modular kits. Common set-ups are kelly drilling and CFA, but many others are possible like diaphragm walls, soil mixing, soil displacement hydraulic hammer and customized set-up
Technical data
| Parameter | Unit | Value | Parameter | Unit | Value |
|---|---|---|---|---|---|
| Engine power | kW (hp) | 202 (271) | Min working headroom | mm - ft | 7,600 - 24.9 |
| Drilling Torque | kNm - lbf ft | 180 - 132,760 | Main winch line pull | kN - lbf | 170 - 38,220 |
| Max pile diameter | mm - in | 2,500 - 98 | Aux winch line pull | kN - lbf | 90 - 20,230 |
| Max pile depth | m - ft | 60 - 196 | Total weight (w/o tool) | kg - lbs | from 57,500 - 126,760 |
