GEAX-ek75-p
- Share
Year
2024
Price
Contact Us For Pricing
Manufacturer
Geax
Model
EK75
Condition
New
| Base | |
| Engine power | 97.4 kW – 131 hp |
| Undercarriage length | 4.065 mm – 13.3 ft |
| Width over tracks | 2.490 mm – 8.2 ft |
| Mast | |
| Forward inclination | >10° |
| Backward inclination | >10° |
| Lateral inclination | ±5.5° |
| Mast vertical stroke | 2.250 mm – 7.4 ft |
| Rotary | |
| Nominal torque | 70 kNm – 51.630 lbf ft |
| Drilling speed (4+2) | 10 ÷ 70 rpm |
| Rotary stroke | 1.400 mm – 4.6 ft |
| Winches | |
| Main winch line pull | 110 kN – 24.730 lbf |
| Aux winch line pull | 50 kN – 11.240 lbf |
| Crowd system | |
| Pull down force | 135 kN – 30.350 lbf |
| Extraction force | 135 kN – 30.350 lbf |
| Total rotary stroke | 3.650 mm – 12 ft |
| Excavation | |
| Max pile diameter | 1.500 mm – 60 in |
| Max pile depth | up to 37 m – 121.40 ft |
| Min working headroom | 6.900 mm – 22.6 ft |

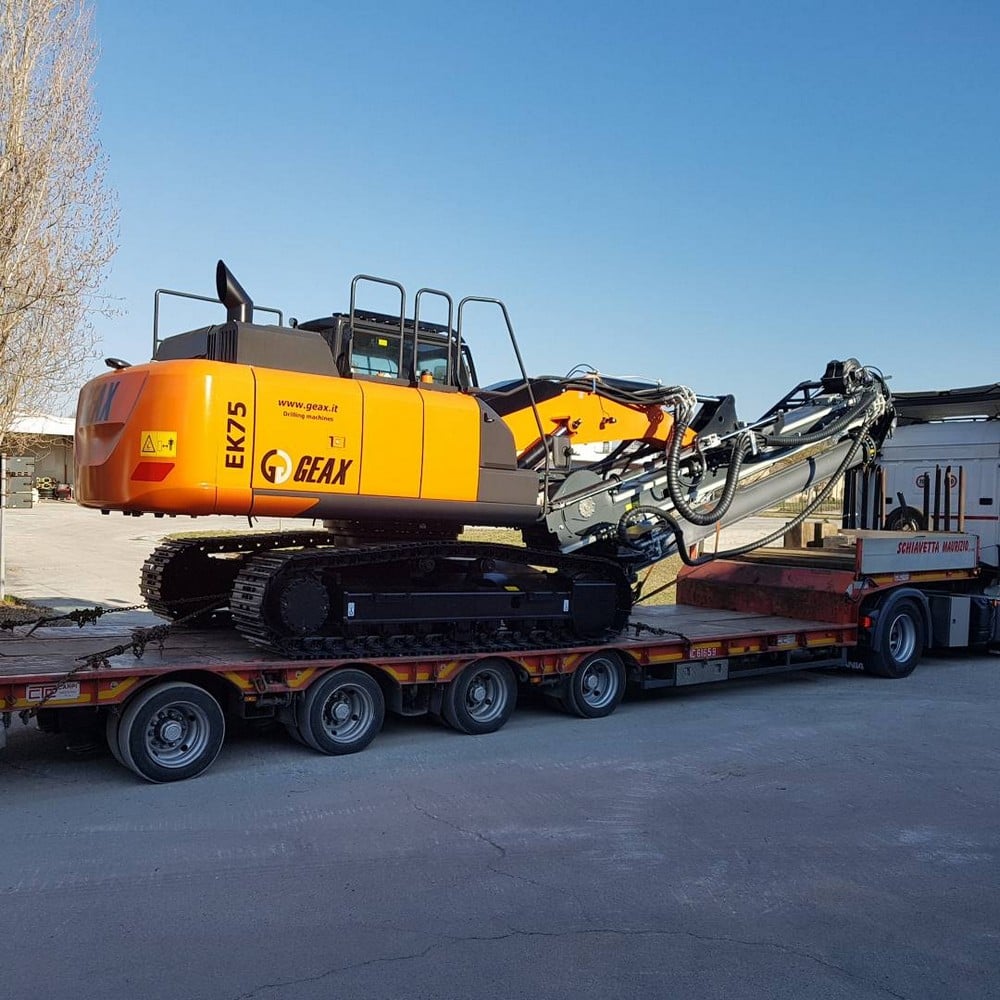

| Transport | |
| Length | 11.000 mm – 36 ft |
| Width | 2.490 mm – 8.2 ft |
| Height | 3.150 mm – 10.3 ft |
| Weight | 27.000 kg – 59.500 lb |
